etcd 3.7

如何搭建演示集群

etcd 3.7 开发、运维、升级、API 与内部原理中文指南

在每个 etcd 节点上，指定集群成员：

TOKEN=token-01
CLUSTER_STATE=new
NAME_1=machine-1
NAME_2=machine-2
NAME_3=machine-3
HOST_1=10.240.0.17
HOST_2=10.240.0.18
HOST_3=10.240.0.19
CLUSTER=${NAME_1}=http://${HOST_1}:2380,${NAME_2}=http://${HOST_2}:2380,${NAME_3}=http://${HOST_3}:2380

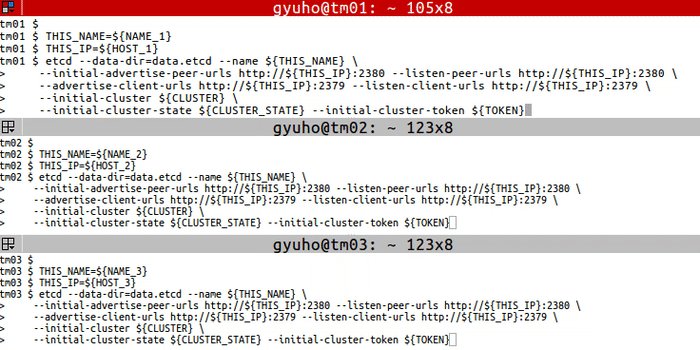

在每台机器上运行以下命令：

# For machine 1
THIS_NAME=${NAME_1}
THIS_IP=${HOST_1}
etcd --data-dir=data.etcd --name ${THIS_NAME} \
	--initial-advertise-peer-urls http://${THIS_IP}:2380 --listen-peer-urls http://${THIS_IP}:2380 \
	--advertise-client-urls http://${THIS_IP}:2379 --listen-client-urls http://${THIS_IP}:2379 \
	--initial-cluster ${CLUSTER} \
	--initial-cluster-state ${CLUSTER_STATE} --initial-cluster-token ${TOKEN}

# For machine 2
THIS_NAME=${NAME_2}
THIS_IP=${HOST_2}
etcd --data-dir=data.etcd --name ${THIS_NAME} \
	--initial-advertise-peer-urls http://${THIS_IP}:2380 --listen-peer-urls http://${THIS_IP}:2380 \
	--advertise-client-urls http://${THIS_IP}:2379 --listen-client-urls http://${THIS_IP}:2379 \
	--initial-cluster ${CLUSTER} \
	--initial-cluster-state ${CLUSTER_STATE} --initial-cluster-token ${TOKEN}

# For machine 3
THIS_NAME=${NAME_3}
THIS_IP=${HOST_3}
etcd --data-dir=data.etcd --name ${THIS_NAME} \
	--initial-advertise-peer-urls http://${THIS_IP}:2380 --listen-peer-urls http://${THIS_IP}:2380 \
	--advertise-client-urls http://${THIS_IP}:2379 --listen-client-urls http://${THIS_IP}:2379 \
	--initial-cluster ${CLUSTER} \
	--initial-cluster-state ${CLUSTER_STATE} --initial-cluster-token ${TOKEN}

或使用我们的公开发现服务：

curl https://discovery.etcd.io/new?size=3
https://discovery.etcd.io/a81b5818e67a6ea83e9d4daea5ecbc92

# grab this token
TOKEN=token-01
CLUSTER_STATE=new
NAME_1=machine-1
NAME_2=machine-2
NAME_3=machine-3
HOST_1=10.240.0.17
HOST_2=10.240.0.18
HOST_3=10.240.0.19
DISCOVERY=https://discovery.etcd.io/a81b5818e67a6ea83e9d4daea5ecbc92

THIS_NAME=${NAME_1}
THIS_IP=${HOST_1}
etcd --data-dir=data.etcd --name ${THIS_NAME} \
	--initial-advertise-peer-urls http://${THIS_IP}:2380 --listen-peer-urls http://${THIS_IP}:2380 \
	--advertise-client-urls http://${THIS_IP}:2379 --listen-client-urls http://${THIS_IP}:2379 \
	--discovery ${DISCOVERY} \
	--initial-cluster-state ${CLUSTER_STATE} --initial-cluster-token ${TOKEN}

THIS_NAME=${NAME_2}
THIS_IP=${HOST_2}
etcd --data-dir=data.etcd --name ${THIS_NAME} \
	--initial-advertise-peer-urls http://${THIS_IP}:2380 --listen-peer-urls http://${THIS_IP}:2380 \
	--advertise-client-urls http://${THIS_IP}:2379 --listen-client-urls http://${THIS_IP}:2379 \
	--discovery ${DISCOVERY} \
	--initial-cluster-state ${CLUSTER_STATE} --initial-cluster-token ${TOKEN}

THIS_NAME=${NAME_3}
THIS_IP=${HOST_3}
etcd --data-dir=data.etcd --name ${THIS_NAME} \
	--initial-advertise-peer-urls http://${THIS_IP}:2380 --listen-peer-urls http://${THIS_IP}:2380 \
	--advertise-client-urls http://${THIS_IP}:2379 --listen-client-urls http://${THIS_IP}:2379 \
	--discovery ${DISCOVERY} \
	--initial-cluster-state ${CLUSTER_STATE} --initial-cluster-token ${TOKEN}

现在 etcd 已准备就绪！使用 etcdctl 连接 etcd：

export ETCDCTL_API=3
HOST_1=10.240.0.17
HOST_2=10.240.0.18
HOST_3=10.240.0.19
ENDPOINTS=$HOST_1:2379,$HOST_2:2379,$HOST_3:2379

etcdctl --endpoints=$ENDPOINTS member list
